Security

What Peekaboot exposes while it is on, and how to put a lock in front of it.

Who can reach Peekaboot, and when it is on

Peekaboot switches itself on or off from the way the application was launched. An explicit property always wins.

Every switch except peekaboot.enabled itself also needs peekaboot.enabled=true. What counts as a local run has the full detection rules.

What that means for access:

• Local run. Anyone who can reach the port reads /peekaboot/** without authentication. Bind the server to loopback (server.address=127.0.0.1) if you share a network you don’t trust.
• Local run, error page. A browser request that fails gets the exception, its message and its full stack trace. That page is served on the failing URL, so anyone who can trigger the error sees it, not only someone who can reach /peekaboot/**.
• Deployment with peekaboot.enabled=true. Peekaboot’s HTTP Basic guard challenges any /peekaboot/** request your own security has not authenticated. See If nothing else secures it.

Security-related properties

Types and the remaining details are in Configuration.

What the dashboard and API show

This is the complete list. Anyone who can reach /peekaboot/** can read all of it.

SQL text is shown as your JDBC instrumentation records it, literal values included where the statement carries them. Bind parameters are shown too, recorded on the query’s span. An application that also exports its traces, over OTLP say, sends them along unmasked. Request and response bodies are never captured. A log event emitted outside a trace is dropped.

With the toolbar on, every response carries Server-Timing: trace;desc="00-<traceId>-<spanId>-<flags>", JSON API calls included. Anyone who reads that header and can reach /peekaboot/** can open that request’s trace at GET /peekaboot/api/traces/{traceId}/insights. Responses under /peekaboot/**, your management base path, /static/**, /webjars/** and /error/** get no header.

Every /peekaboot/api/** response carries Cache-Control: no-store and X-Content-Type-Options: nosniff, so a proxy or the browser’s cache does not keep it.

What the error page shows

The error page shows every detail Spring Boot’s ErrorAttributes has: the status, the request line, the exception class, its message and the full stack trace. None of it is masked, and your spring.web.error.include-* settings do not limit it. Requests that ask for JSON get Spring Boot’s normal error response instead.

It is on for a local run and off everywhere else. By default it replaces only Spring Boot’s whitelabel page, so an application with its own error page keeps it unless you set peekaboot.error-page.override=true. peekaboot.error-page.enabled=false turns it off. See Configuration, peekaboot.error-page.

What stays in memory and what goes to disk

Request traces, captured headers and parameters, log messages, environment values and config values stay in memory for the life of the process. They are never written to disk.

Peekaboot writes files only while peekaboot.storage.enabled is true, which is the default for a local run only. The one exception is security.properties with an explicit peekaboot.security.credentials-file.

lifecycle.jsonl drops every other build-info and git-info entry, including the git remote URL, the building user’s name and mail address, and anything else your build wrote into build-info.properties.

The files live under ${user.home}/.peekaboot/<groupId>.<artifactId>/ unless peekaboot.storage.dir says otherwise. On a POSIX file system the directory is created rwx------ and the files rw-------. See Configuration, peekaboot.storage.

Peekaboot leaves /actuator alone

Peekaboot reads Actuator’s data in-process. It adds nothing to management.endpoints.web.exposure, and which endpoints /actuator/** serves is the same with or without it. Don’t use management.endpoints.web.exposure to protect Peekaboot: it has no effect on /peekaboot/**.

Peekaboot does set management.info.env, .java, .os and .process.enabled to true while it is on. If you expose /actuator/info, it carries that extra content. See Configuration, Spring Boot defaults Peekaboot changes.

With Peekaboot off, nothing is served under /peekaboot/**, the UI assets included.

Actuator’s show-values does not apply

management.endpoint.env.show-values and management.endpoint.configprops.show-values have no effect on the dashboard. Setting them to never does not blank the Environment and Config tabs. Peekaboot’s own masking decides what those tabs hide. Peekaboot never sets either property, so your own /actuator/env and /actuator/configprops behave as you configured them.

Masking

Masking is on by default and has nothing to configure. It replaces a value with ****** in:

• environment and @ConfigurationProperties values
• health details, info.build and datasource connection parameters
• Micrometer meter tags
• captured headers, query and form parameters, span tags, span error messages, SQL text and bind parameters
• the last failure message of a scheduled task
• the database connection parameters in Peekaboot’s startup log line

Your own SanitizingFunction beans also run on environment and config values, so a value they mask reaches the dashboard as ******.

What gets masked, and how

Two rule sets run together.

By key name. A key is sensitive when one of these words appears in it as a whole token, separated by any character other than a letter or digit, or by a camelCase boundary. Case does not matter.

password              passwords             passwd
passwds               pwd                   passphrase
passphrases           secret                secrets
client-secret         client-secrets        token
tokens                access-token          refresh-token
id-token              auth-token            bearer
credential            credentials           api-key
api-keys              apikey                apikeys
access-key            access-keys           private-key
private-keys          secret-key            secret-keys
signing-key           signing-keys          encryption-key
encryption-keys       authorization         auth
session-id            salt                  signature
sig                   certificate-password  certificate-private-key

• A sensitive key masks its entire value.
• Words match only as whole tokens: design and signal are not masked.
• These key patterns also mask: vcap_services and sun.java.command anywhere in the key, ^vcap\.services.*$, and ^spring[._]application[._]json$.
• cookie, set-cookie, http.request.header.cookie and http.response.header.set-cookie mask only as the entire key. server.servlet.session.cookie.* stays readable.
• The exact key PWD (the shell’s working directory) is not masked. db.PWD and a PWD= parameter inside a value are.
• Bare key and bare certificate are not in the list, so server.ssl.key-store and server.ssl.certificate stay readable.
• A key whose last token is uri or url skips the word list. Only the four key patterns above apply to it. …provider.<x>.token-uri stays readable, and so does app.password-url. app.token-uri.password is masked.

By value shape. These patterns mask a credential inside any value, whatever its key. Only the matched part is masked, so a JDBC URL keeps its host and database name.

A parameter or option is judged by its name with the key-name rules above. It needs its marker: a bare password=hunter2 without a leading ?, &, ;, -D or -- is not masked. A PEM block without a footer masks to the end of the value.

The key names and value shapes above are the complete set.

What is left unmasked entirely

• log message content
• process identity: OS user, uid, gid, pid, parent processes
• machine facts, IP addresses and hostnames included
• the datasource user, host and database name
• the run history
• the error page, message and stack trace included
• anything no key-name rule and no value shape recognises

Two opt-ins before a real value is shown

Masked values are revealed only when both are true:

1. peekaboot.enable-unmasking=true. The default is false.
2. The request is GET /peekaboot/api/actuator/all/insights?unmask=true. No other endpoint accepts unmask.

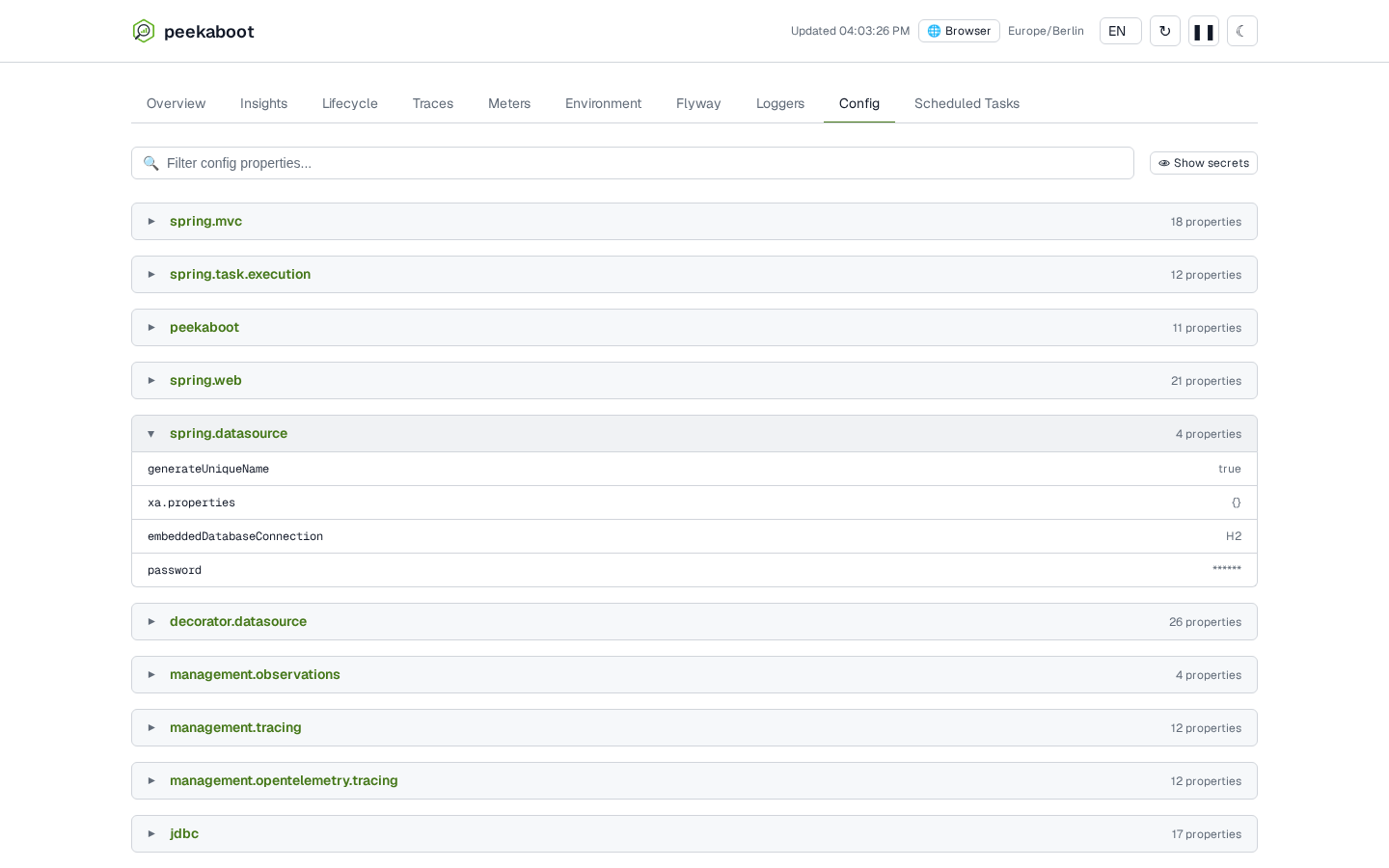

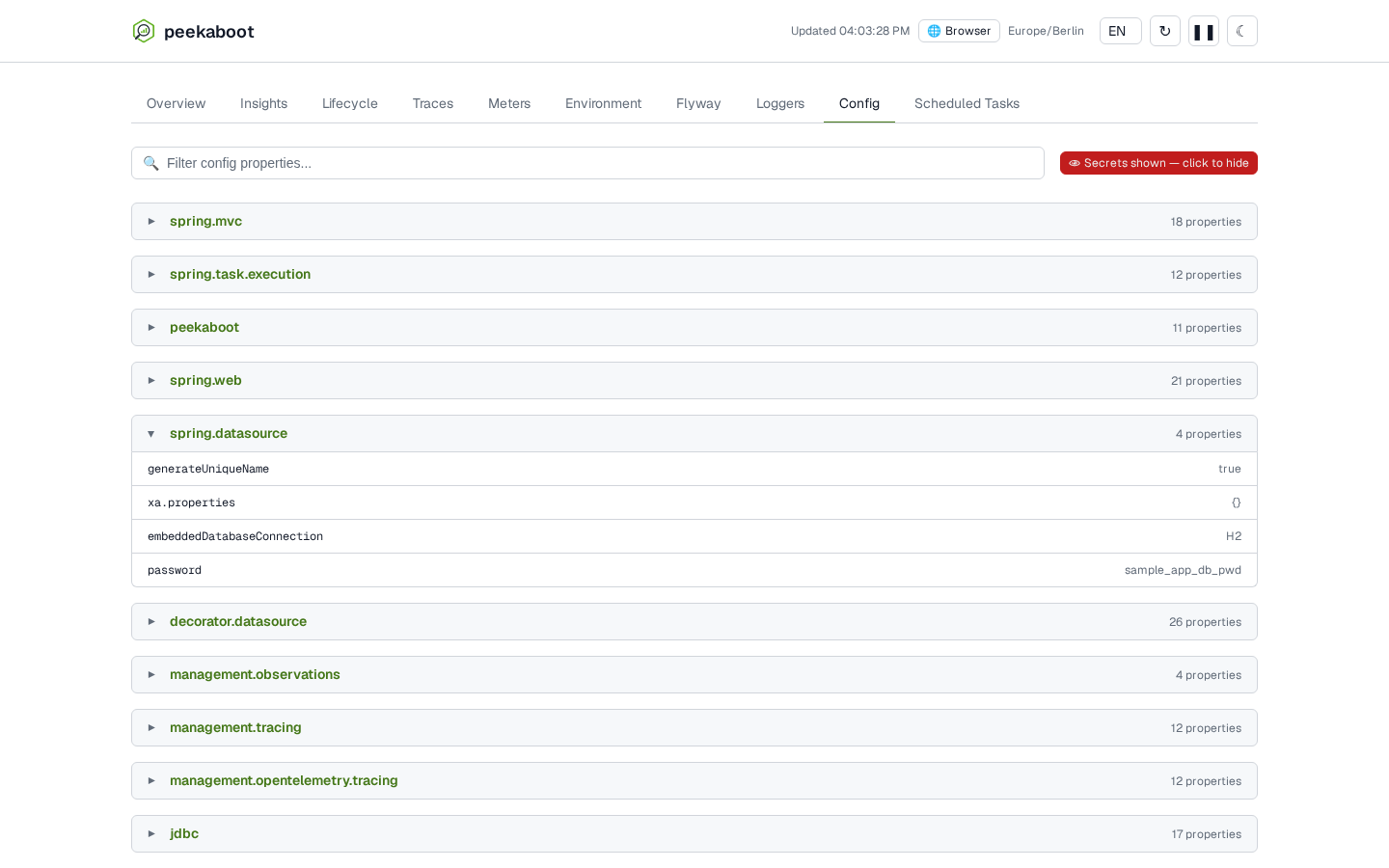

The parameter alone does nothing. With unmasking enabled, the Environment and Config tabs show a “Show secrets” toggle. It is absent otherwise. Its state is not kept: a reload or a new tab starts masked. See The dashboard.

Securing the dashboard with Spring Security

Put a SecurityFilterChain in front of /peekaboot/** that requires a specific role:

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
public class PeekabootSecurityConfig {

    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public SecurityFilterChain peekabootSecurityFilterChain(HttpSecurity http) throws Exception {
        return http.securityMatcher("/peekaboot/**")
                .authorizeHttpRequests(auth -> auth.anyRequest().hasRole("ADMIN"))
                .httpBasic(Customizer.withDefaults())
                .build();
    }

    // Stands in for your application's own chain. No @Order, so it is evaluated last.
    @Bean
    public SecurityFilterChain applicationSecurityFilterChain(HttpSecurity http) throws Exception {
        return http.authorizeHttpRequests(auth -> auth.anyRequest().permitAll()).build();
    }

    // Stands in for wherever your users and roles already come from.
    @Bean
    public UserDetailsService userDetailsService() {
        return new InMemoryUserDetailsManager(
                User.withUsername("admin")
                        .password("{noop}admin-password")
                        .roles("ADMIN")
                        .build(),
                User.withUsername("user")
                        .password("{noop}user-password")
                        .roles("USER")
                        .build());
    }
}

Two rules make this work:

1. The Peekaboot chain goes first. Give it securityMatcher("/peekaboot/**") and @Order(Ordered.HIGHEST_PRECEDENCE). Leave your application’s chain without @Order. Don’t add a /peekaboot/** rule to your general chain instead, and don’t give that chain a lower order. Either way it matches /peekaboot/** first and the role check never runs.
2. Don’t paste applicationSecurityFilterChain. It permits every request. If your application already has a chain, keep it and add only the first bean. If it has none, note that declaring any SecurityFilterChain switches off Spring Boot’s default chain: every request outside /peekaboot/** then passes unsecured unless you add a chain for it.

Replace httpBasic with whatever your application uses: form login, OAuth2, a gateway header. Use .authenticated() instead of .hasRole(...) only if every signed-in user may read everything listed under What the dashboard and API show.

The dev toolbar asks the reader to sign in

The dev toolbar is injected into every HTML page, whoever is reading it. Its script and data load from /peekaboot/**, so your chain decides who sees a filled toolbar. A reader your chain refuses sees an empty bar with this link:

Peekaboot toolbar could not start — sign in, or check that its script is allowed to load

The link opens /peekaboot/. The browser gets the 401 challenge and asks for credentials. After signing in, the toolbar fills on the next page load.

If your application sends a Content-Security-Policy:

• script-src must allow /peekaboot/ui/toolbar/toolbar.js. 'self' covers it. A nonce-only policy cannot work, because Peekaboot’s script tag carries no nonce. Without this the bar stays on the notice above for every reader.
• Without style-src 'unsafe-inline', a reader outside the role sees the notice as unstyled text at the foot of the page. Readers inside the role are unaffected.

If nothing else secures it

On a deployment launch with peekaboot.enabled=true, Peekaboot arms an HTTP Basic guard (realm Peekaboot) on /peekaboot/**. It challenges every request that does not already carry an authenticated, non-anonymous Spring Security principal. Without Spring Security on the class path, it challenges every request.

The credentials:

• Username: peekaboot.security.username, else your build’s artifact id plus -admin, else spring.application.name plus -admin, else peekaboot-admin.
• Password: peekaboot.security.password, else the hash stored in security.properties, else a generated 26-character password printed in the startup log’s Peekaboot Security block.

Rules to know:

• A Spring Security chain that authenticates the request satisfies the guard. A VPN, an nginx basic-auth layer, an IP allowlist or an API gateway does not, because none of them puts a principal on the request. The guard still challenges behind them.
• There is no rate limit on failed attempts. Rate-limit at the proxy in front of the application.
• The Peekaboot Security block logs at WARN when Spring Security is not on the class path or the toolbar is on, and at INFO otherwise. With the toolbar on, its requests make ordinary pages raise a credential dialog.
• The first challenged request logs one WARN. Later failed attempts log at DEBUG.
• peekaboot.security.enabled=false turns the guard off. On a deployment launch Peekaboot then logs a WARN at startup that nothing authenticates /peekaboot/**.

Use the SecurityFilterChain above instead of relying on this guard. It has one flat credential and no roles.

Running it on a shared or deployed server

Read Do I want this in production? first. Then:

1. Set peekaboot.enabled=true. The toolbar, storage and error page stay off unless you set them too.
2. Put the SecurityFilterChain in front of /peekaboot/** before you deploy. Gate on a role, because whoever passes it reads everything under What the dashboard and API show.
3. Restrict network reach as well: an internal-only ingress, a VPN, or a proxy that forwards /peekaboot/** only from trusted sources.
4. Leave peekaboot.enable-unmasking=false.
5. If you rely on the fallback guard, keep its password stable (see above).

Production checklist

• Verify peekaboot.enabled resolves to false in your deployed environment. The startup summary has no Peekaboot Dashboard: line when the dashboard is off.
• Set peekaboot.enabled=false explicitly if you run your build output directly on a host that is not a container (java -cp target/classes …). Peekaboot counts that as a local run. See What counts as a local run.
• If Peekaboot must never ship, keep the starter out of the production artifact. See Keeping it out of the artifact entirely.
• If you turn it on somewhere reachable, put a SecurityFilterChain in front of /peekaboot/** first.
• Don’t rely on management.endpoints.web.exposure. It does not affect /peekaboot/**.
• Leave peekaboot.enable-unmasking=false. With it on, anyone who can reach /peekaboot/** can add ?unmask=true.
• Don’t treat masking as complete. Log messages are never masked, and SQL and request data are masked only where a rule recognises them. Don’t point Peekaboot at traffic whose secrets must not be held in memory and displayed.
• Leave peekaboot.dev-toolbar off outside a local run unless you need header, parameter and log capture. peekaboot.enabled=false turns it off too.
